Astra Multi Patterns Tube Microphones

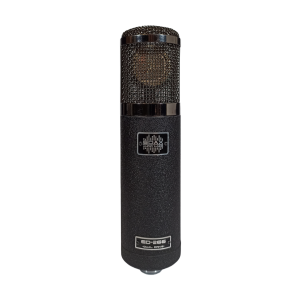

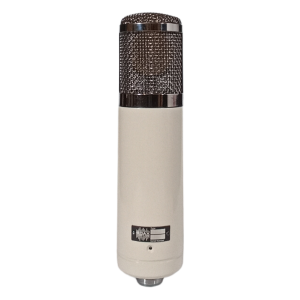

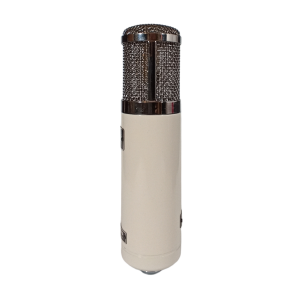

The ASTRA Series, are multipattern mcrophone available in two capsule versions —the ED-265 and the ED-266, is distinguished by its toroidal transformer output, which adds a warm, musical coloration while ensuring excellent signal integrity and dynamic response, together with a high-speed active output circuit.
A perfect fusion of the vintage character of classic 1950s tube microphones and the reliability of contemporary engineering, designed for today’s demanding recording environments.
Technical Specifications
CAPSULE TYPE: ED-255 K67 Style
Polar Pattern: Remote controller 11 Steps Multipattern.
Frequency Response: 20 Hz to 20KHz ±3 dB
Sensitivity: 20mV/Pa
Maximum SPL: 120 dB
Distortion: < 1% @ 134 dB SPL Capsule depending.
Tipical Self Noise: 12dB nominal, not to exceed 16dB (A weighted)
Output Type : “Dual Drive”
Impedance: 200 Ω Custom Edax Toroidal Output transformer. Transformerless 50 Ω
Hi Slew Rate.
Power Requirement: PS-320 Power Supply

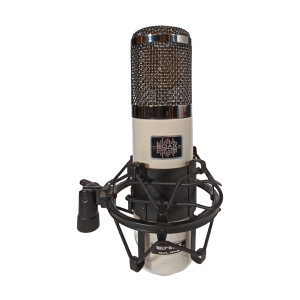

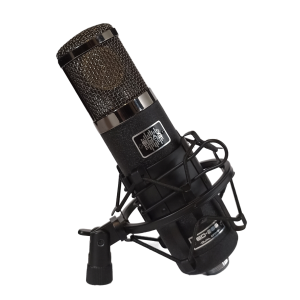

Kit: Include microphone, power supply, shock mount, 5mt audio 5 XLR cable
with protective plastic case with custom molded foam.
Dimensions:

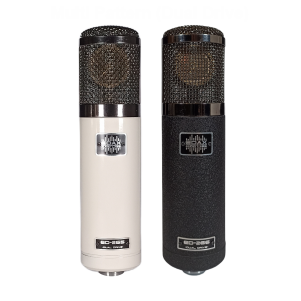

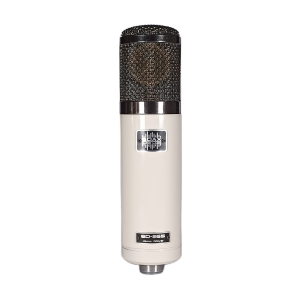

Microphone: ED-254 Bone color 200mm x 50mm.
Microphone: ED-255 Black Color 200mm x 50mm.
“In order to ensure continuous innovation and enhancement of our products,
technical specifications may be subject to change without prior notice.”
