Matrix Hot-Swappable Capsules Tube Microphones.

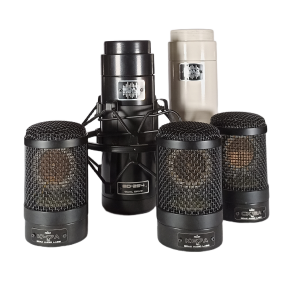

The Matrix line microphones feature a tube body with interchangeable capsules, allowing a single microphone chassis —housing the electronics and connections— to accommodate different detachable capsules, each with its own sonic character and polar pattern.

This versatile design adapts one microphone body to a wide range of applications simply by swapping capsules, reducing the need for multiple microphones and saving valuable studio space.

With this flexibility, users can choose capsules that capture the character of legendary classics or experiment with entirely new sonic textures. Unlike digital emulation systems that attempt to replicate multiple microphones with a single capsule, the Matrix delivers authenticity by relying on the true physical response of each capsule.

The Matrix is also a multipattern microphone, offering remote polar pattern control directly from its power supply. It incorporates our exclusive DUAL DRIVE output, combining an active circuit path and a high-performance toroidal transformer path, each operating independently. This allows for a seamless phase-coherent summation in post-production.

       Key Advantages & Benefits of the “Hot-Swappable Capsules” System:

  • Versatility: a single microphone body can adapt to various applications simply by changing the heads.
  • Space and cost savings: no need to purchase multiple complete microphones; one body with several interchangeable capsules is enough.
  • Instant Lock for capsule heads.
  • Prevents loud noises and protects the electronics during capsule changes, thanks to the auto-mute system, which automatically silences the signal when a capsule is removed.
  • Combine tube warmth with maximum sonic flexibility and the convenience of hot-swappable capsules.
  • Not emulations — capsules with unique physical characteristics.
  • No special tools or screws are needed to remove or replace capsules, and no restart time is required.

Technical Specification

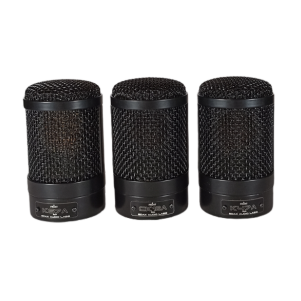

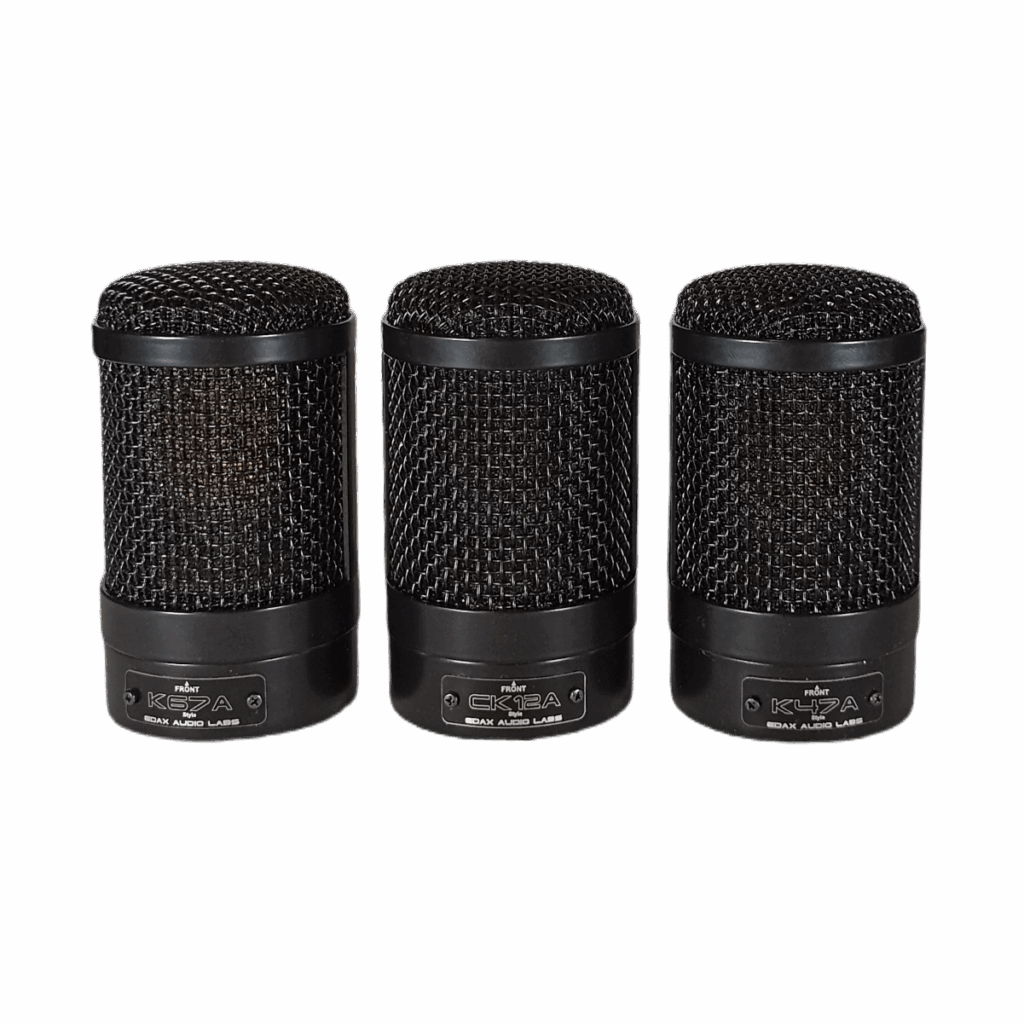

Capsule Type: Standard configurations, Ck12, K47 & K67 Heads. Available other

capsules on request Unlimited options. Contact with Edax Audio Labs.

Polar Pattern: Remote controller 11 Steps Multipattern.

Frequency Response: Electronics 20 Hz to 20KHz ±0.1 dB

Sensitivity: 20mV/Pa

Maximum SPL: 120 dBDISTORTION: < 1% @ 134 dB SPL Capsule depending.

Tipical Self Noise: 12dB nominal, not to exceed 16dB (A weighted)

Output Type : “Dual Drive”

Impedance: 200  Ω Custom Edax Toroidal Output transformer. Transformerless 50 Ω

Hi Slew Rate.

Power Requirement: PS-320 Power Supply.

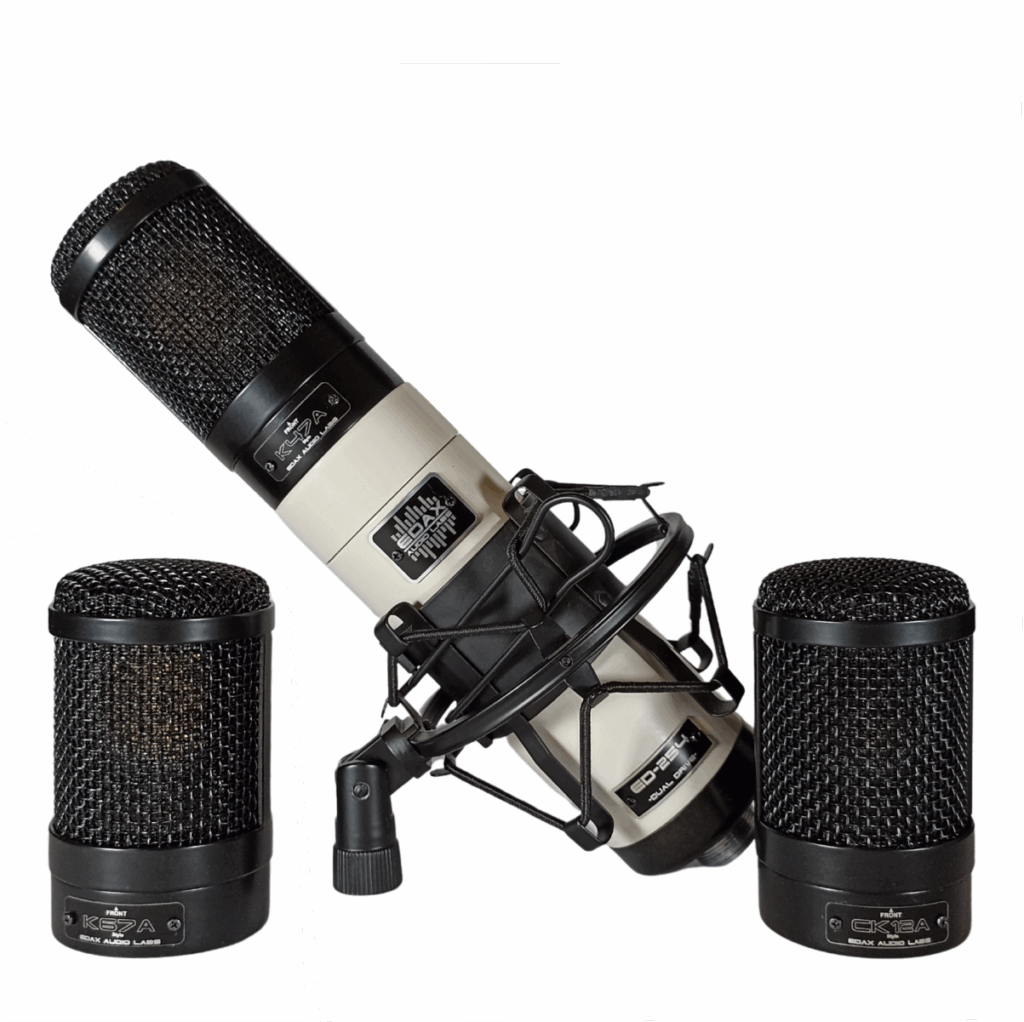

Kit: Include: Tube Body , Ck12, K47 & K67 Heads, power supply, shock mount, 5mt audio 5 XLR cable

with  protective  plastic case with custom molded foam.

Dimensions:

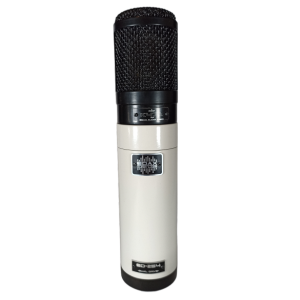

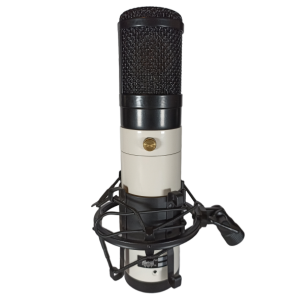

Microphone: ED-254 Bone color   235mm x 50mm.

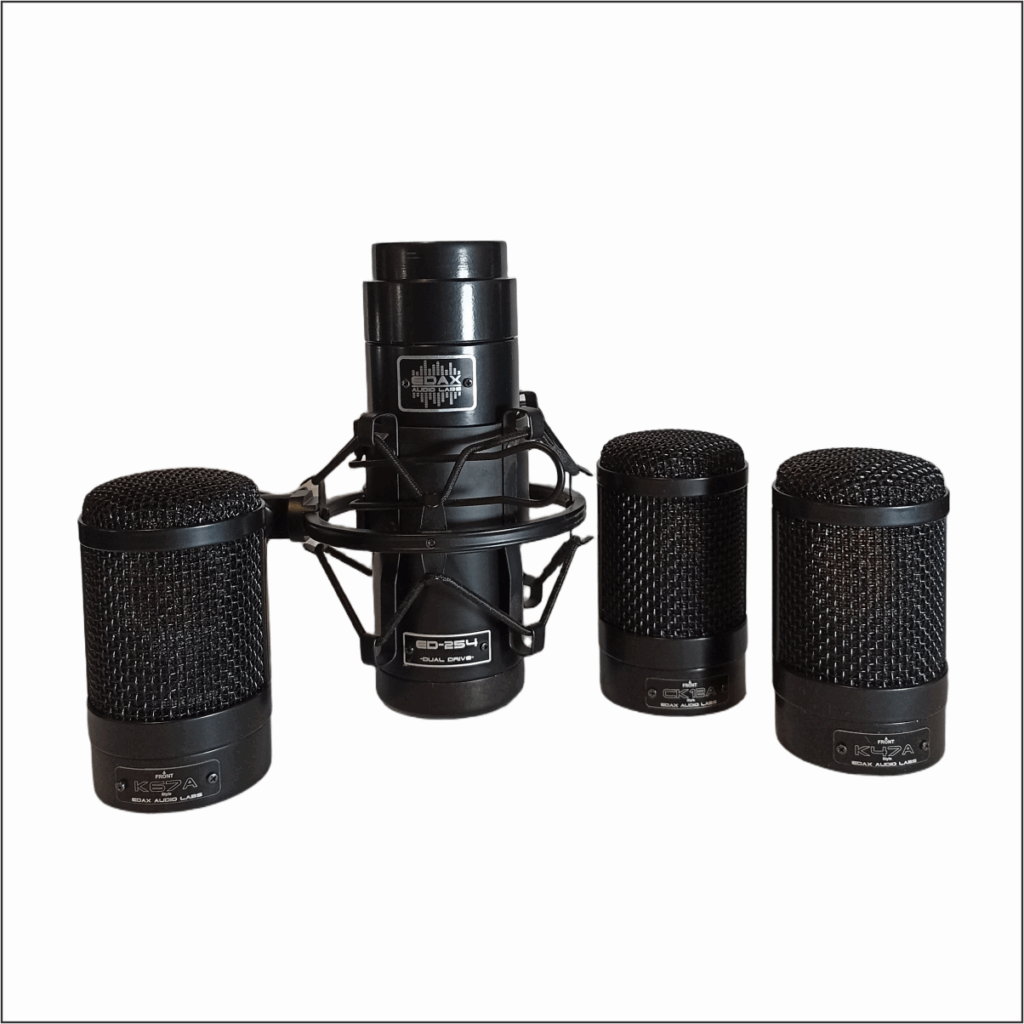

Microphone: ED-255 Black Color  235mm x 50mm.

“In order to ensure continuous innovation and enhancement of our products,

technical  specifications may be subject to change without prior notice.”
