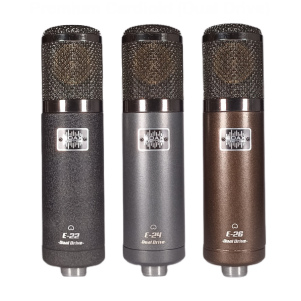

The Clarity Series consists of three tube microphones models E-22, E-24, and E-26 with different capsules styles, all in fixed cardioid configuration. Its distinctive feature is the dual-output “DUAL DRIVE” system, which provides two simultaneous signals: High-quality toroidal transformer output, delivering a superior response compared to conventional transformers found in most passive-output microphones, while adding a warm, musical coloration and transformerless high-speed output, offering greater transparency and extended dynamic response.
All models share the same internal electronic design and feature a pentode tube configured in triode mode, carefully selected for its low noise and authentic sonic character. While the circuitry is common, it is optimized for each capsule to ensure maximum performance across all versions. Thanks to the phase-coherent DUAL DRIVE design, both outputs can be seamlessly summed without cancellations, even when using two or three microphones from the series simultaneously —whether facing each other or in multi-mic setups.
This eliminates the typical cancelation phase issues that arise when combining microphones of different types for vocal recording. The result is a classic tube circuit capable of capturing every nuance with precision, delivering rich tonal depth. The Clarity Series represents a perfect fusion of the vintage character of 1950s tube microphones with the reliability of contemporary engineering, designed to meet the demands of today’s most critical recording environments.

Technical Specifications
Capsule Type: E-22 K67 Style
Capsule Type: E-24 Ck12 Style
Capsule Type: E-26 K47 Style
POLAR PATTERN: Cardioid.
Frequency Response: Electronics 20 Hz to 20KHz
Sensitivity: 20mV/Pa
Maximum SPL: 120 dBDISTORTION: < 1% @ 134 dB SPL Capsule depending.
Tipical Self Noise: 12dB nominal, not to exceed 16dB (A weighted)
Output Type: “Dual Drive”
Impedance: 200 Ω Custom Edax Toroidal Output transformer. Transformerless 50 Ω Hi Slew Rate.
Power Requirement: PS-300 Power Supply
Dimensions:

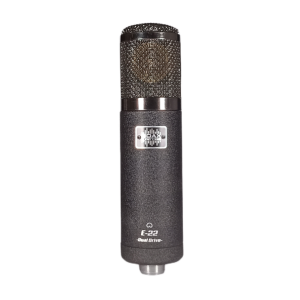

Microphone: ED-22 Black color 200mm x 50mm.

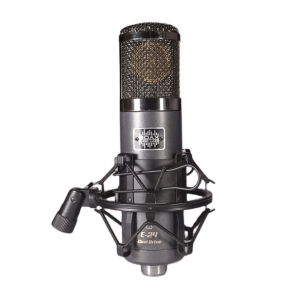

Microphone: ED-24 Grey Color 200mm x 50mm.

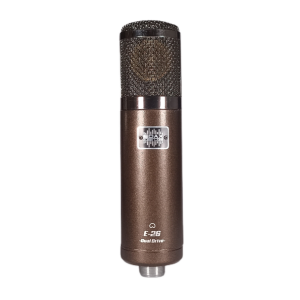

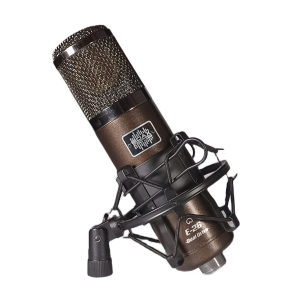

Microphone: ED-26 Copper Color 200mm x 50mm.
“In order to ensure continuous innovation and enhancement of our products,
technical specifications may be subject to change without prior notice.”
